HYDROCRIMP's HC-P16MP Hose Crimper Replaces a $10.50 Assembly Fee

Verdict Discount Hydraulic Hose charges $10.50 to crimp an assembly, so the $1,199 HC-P16MP is 115 hoses. Against an $84.95 retail hose it reads as 23, but only $10.50 of that $53.87 gap is the crimp.

Prices are US list prices at the time of publication. Shipping, duties and local taxes vary by country — check with the manufacturer before ordering.

Every verdict we have published, one page →

Discount Hydraulic Hose sells 1/2-inch SAE 100R16 hose at $3.72 a foot, the female JIC ends that go on it at $6.24 each, and it will crimp the two onto the one for a published assembly fee of $10.50.

That $10.50 is the whole job this machine does. The HC-P16MP is $1,199, cart live, which makes it 115 crimps.

The Machine

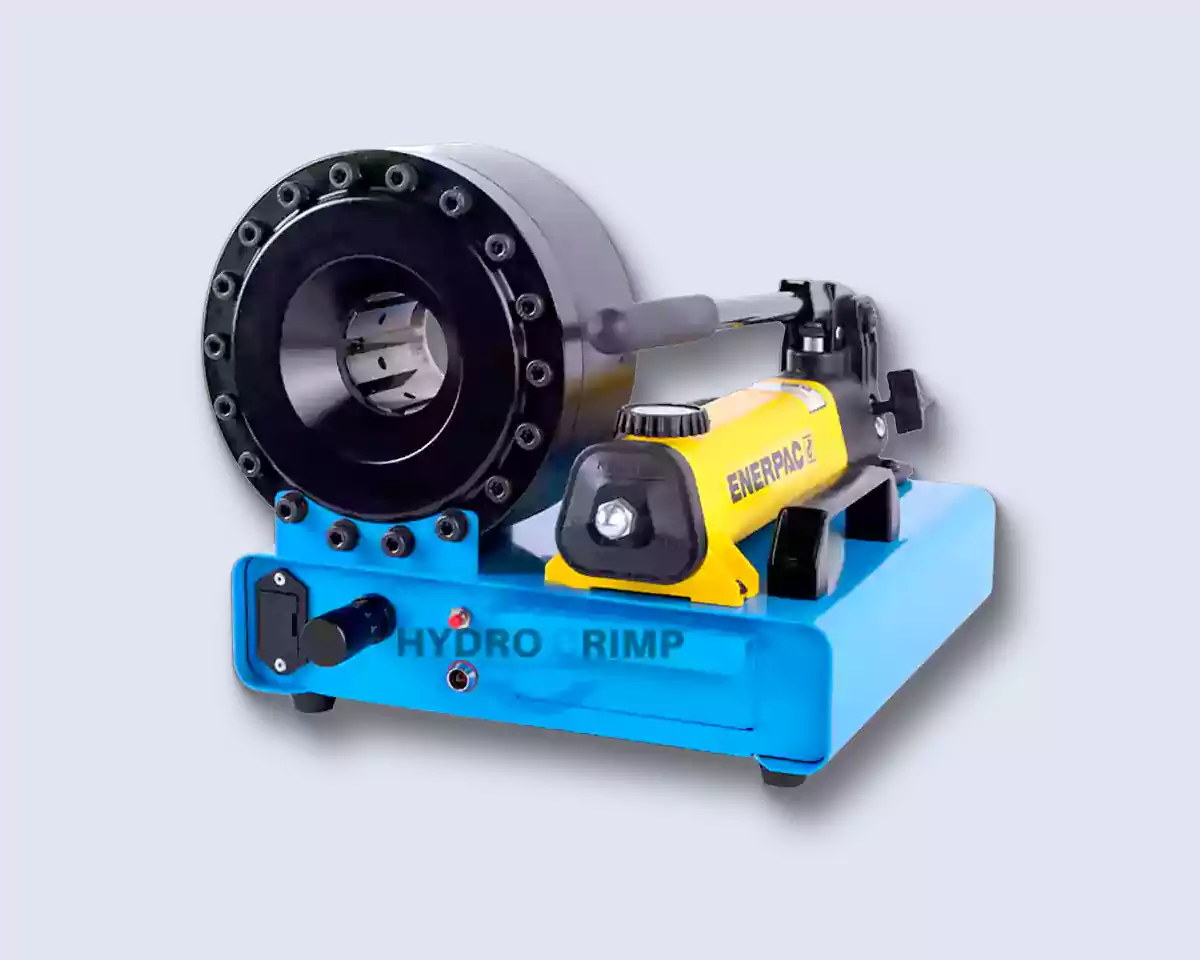

The HC-P16MP is a bench crimper with no motor in it: a sixteen-bolt head on a blue base, a die drawer underneath, an Enerpac hand pump doing the pushing. Rated force is 955 kN. It weighs 25 kg and needs no outlet, which is why it can live in a service van.

Six dies ship with it — #14, #16, #19, #23, #27 and #31 — covering 1/4 to 1 inch of hose ID, or 14 to 34 mm across the crimped ferrule. Warranty is 12 months. Stock is real: the structured data reads InStock at 1199.00 and the buy button carries no disabled. Shipping is free, five to eight days.

The Numbers

Two sellers publish the finished hose. Summit Hydraulics sells it built, by length. Discount Hydraulic Hose sells the same hose type made to order and — the rare part — prices the hose, the ends and the crimping separately.

The second and third counts are the ones a shop reaches on its own, and neither measures this machine. Against Summit’s 60-inch hose the saving is $53.87 — but $43.37 of that is a finished part from one company against loose parts from another. Discount Hydraulic Hose hands you the identical assembly for $41.58. The crimp inside it is $10.50: 12.36% of what the built hose costs at Summit.

Watch the length change. Against the 60-inch hose the count is 23; against the 120-inch hose it is 15, because a longer hose carries more markup, not more crimping. The crimp break-even does not move — 115 at every length and fitting. Nor does the volume discount move it: the JIC end drops to $5.89 past 120 pieces, and $1,199 is still 115 crimps.

The flattering saving is 5.13 times the crimp it gets credited to. The lumber kiln report hit the same split drying its own boards, and the rule it left holds here: when a machine can be priced against the exact operation it performs, that is the price.

What Breaks

A bad crimp on a 4,000 psi line is not a cosmetic defect. Crimp diameter is specified by whoever made the hose and the fitting together, and generic dies do not carry that specification. Discount Hydraulic Hose names its compatible ends by series; the HC-P16MP page says its dies suit JIC, BSP and metric fittings without naming a brand it is qualified against. No crimp tolerance appears on either page: DATA NOT AVAILABLE FROM SOURCE. The vernier adjusts 0.1 to 2 mm, so the number exists; who supplies it does not.

The comparison is only even at 60 inches and up. Summit publishes 5,100 psi working pressure for its 24 to 48-inch assemblies and 3,500 psi from 60 inches up. R16-08 is published at 3,980 psi. The hose built here beats the long assemblies and falls short of the short ones — which is why the counts above use the 60 and the 120, and why buying loose means owning that check yourself.

It does not fix the tractor that broke today. Delivery is five to eight days from China. The counter selling the $84.95 hose makes it while you wait and stocks the ends you did not know you needed, which appears on no rate sheet. The laser cleaner report found the mirror image: the hired blaster drives to the work, and the machine replacing it waits for the work to arrive.

It arrives without the oil it runs on. The seller recommends #46 hydraulic oil and does not sell it: DATA NOT AVAILABLE FROM SOURCE. The indicator needs a 9-volt battery, also not in the box. Dies outside the six included run $43.00 for the #6 through #12 sizes, and the toothed dies the page says you need for A/C ferrules read out of stock in every size — cut to order, one to two weeks, after you email a photograph.

One hundred and fifteen hoses is slow at shop pace. Two a month is 4.79 years against a 12-month warranty. The listed dimensions read “330 × 400 × 270 cm,” a machine the size of a room, beside a weight of 25 kg. Summit ships free over $75; the loose parts may not. Shipping, interest and depreciation are counted on neither side.

Who Should Buy This

The shop that already owns its repairs. The mini excavator report closed its list with this buyer exactly — “not for anyone who wants somebody else to own the repair.” Someone who already turned down the service call is the only person for whom 115 is reachable.

The operation whose hoses fail where a counter is not. Remote ground, weekend breakdowns, a fleet that moves. The argument is not the $10.50. It is that the hose gets made at all, at 9 p.m., without electricity — the one thing an assembly fee cannot buy at any price.

Not for a shop making a hose a month, which is a decade. Not for anyone comparing against a retail hose without first pricing the same parts loose. Not for lines above 3,980 psi on R16, and not for A/C work until the toothed dies arrive.

The Stack

No affiliate links in this issue. When a link earns us a commission, we always say so. Verdicts are never for sale.

If the count clears a hundred and the hoses fail far from a counter, the HC-P16MP at $1,199 is the machine it describes: 955 kN, six dies, no outlet.

Before that, price the job at Discount Hydraulic Hose, the only seller here that shows the crimp as its own line. Configure the hose you actually break and read the $10.50 under it.

Keep Summit’s length-by-length list open beside it, and the FJX-08-08 ends at $6.24 loose. Summit’s 30-inch hose is $54.95 and its 24-inch is $69.95 — the shorter one costs more, which is the clearest sign available that you are reading a price and not a cost.

Count the hoses you made last year, not the ones you paid for. The gap between those two numbers is where this machine pays or sits.
